Tape sheet
Measure the Y
Point A · length
Rocker span
Rear lip of the front wheel arch → front lip of the rear wheel arch, along the top of the black cladding.
Follow the body, not a straight line in the air. This is the length of every lower graphic.
Feeds
Sweep, Belt, Twin-track, Cascade
Jump to
0 of 12 filled. Driver side is enough — passenger is the mirror.
Log
Park on level ground. Tailor’s tape. One side. Nearest ⅛ inch.

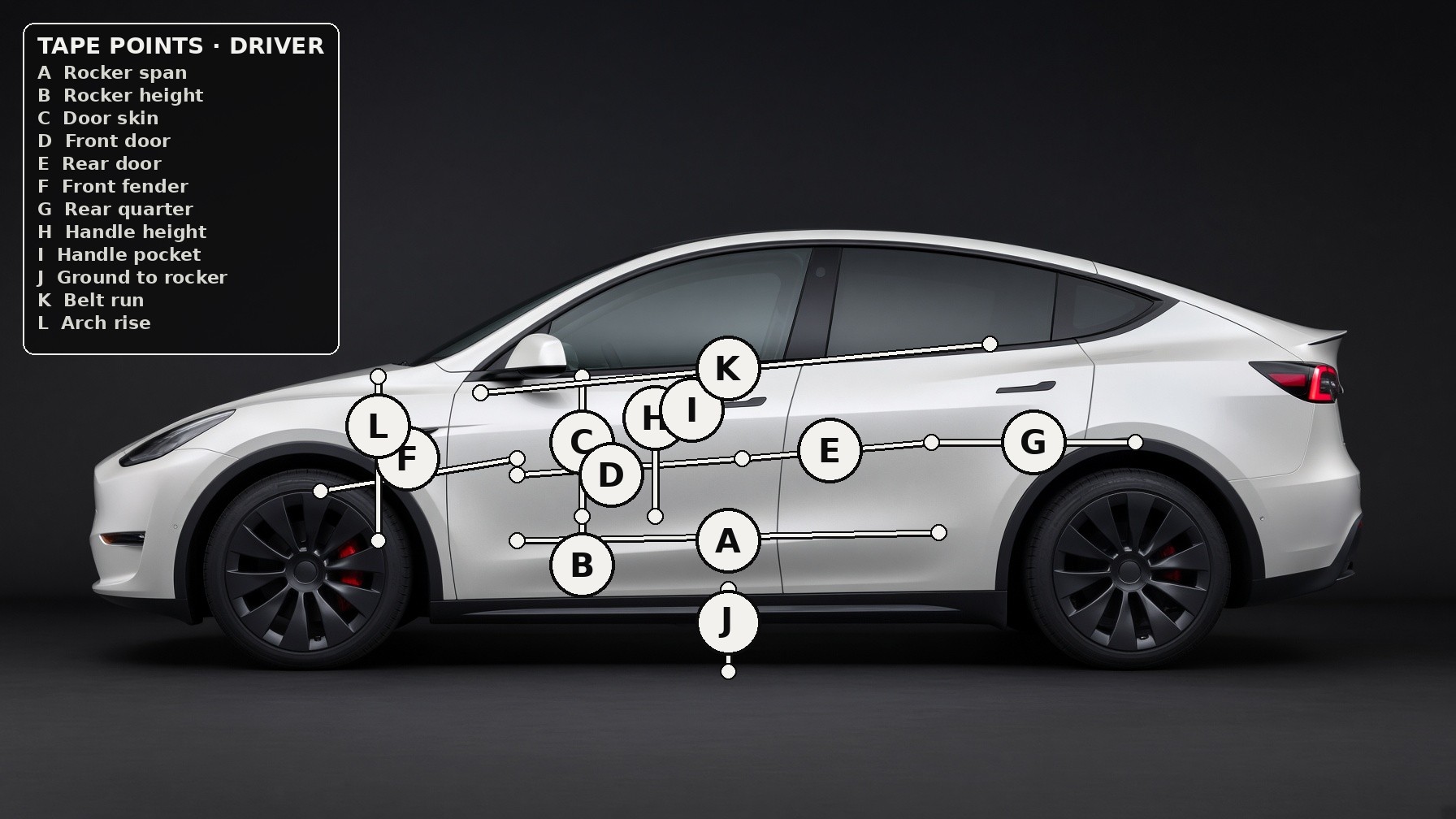

| Pt | Span | Tape from → to | Inches |
|---|---|---|---|
| Rocker span | Rear lip of the front wheel arch → front lip of the rear wheel arch, along the top of the black cladding. | ||
| Rocker height | Bottom edge of the black cladding → the body crease at the top of the rocker, mid-door. | ||
| Door skin | Top of the rocker crease → bottom of the glass (the beltline), mid front door. | ||
| Front door | Front door leading seam → trailing seam (B-pillar gap), measured at handle height. | ||
| Rear door | Rear door leading seam → trailing seam (C-pillar), at handle height. | ||
| Front fender | Rear of the front wheel arch → front door leading seam, along the mid-body line. | ||
| Rear quarter | Rear door trailing seam → front of the rear wheel arch (or to the taillight if the graphic runs past the arch). | ||
| Handle height | Top of the rocker crease → center of the front door handle. | ||
| Handle pocket | Length of the handle recess, front edge to rear edge of the pocket. | ||
| Ground to rocker | Ground → bottom edge of the black cladding, under the front door. | ||
| Belt run | Along the chrome / glass rail from the A-pillar (mirror) to the C-pillar, bottom of the glass. | ||
| Arch rise | Top of the rocker → highest point of the front wheel-arch lip. |
